45° Pipe to Pipe Elbows

Diameter: 1" to 8" (25mm to 220mm)
TransairAluminumPipe.com is your complete source for Transair 45° Pipe to Pipe Elbows. Transair 45° Pipe to Pipe Elbows are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: This product (6612 25 00, 6612 40 00, 6612 50 00, 6612 63 00, & RA12 L8 00) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm.
WARNING: This product (RX12 L1 00, RX12 L3 00) can expose you to chemicals including Nickel and Nickel Compounds which is known to the State of California to cause cancer. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

1" to 1 1/2" 45° Elbows

6612-25-00 dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) ØG (in) L (in) Z (in) Quick Ship
6612 25 00 1 25 1 3/4 2 1/4 1 1/8
6612 40 00 1 1/2 40 2 5/8 3 9/16 1 3/4

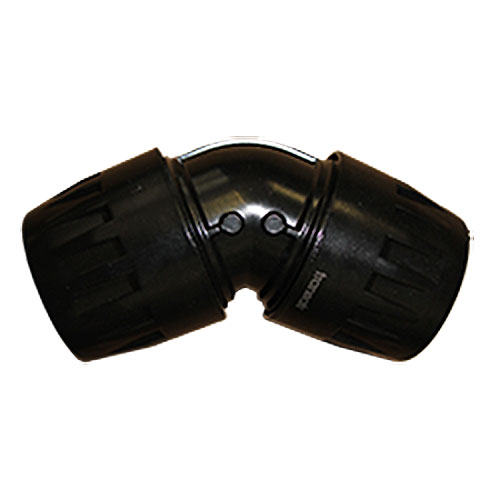

2" to 2 1/2" 45° Elbows


6612-63-00 Dimenions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) ØG (in) L (in) Z (in) Quick Ship
6612 50 00 2 50 3 1/8 3 7/8 1 1/2
6612 63 00 2 1/2 63 3 9/16 4 2 3/8

3" to 4" 45° Elbows


Elbow dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) L1 (in) L2 (in) Quick Ship
RX12 L1 00 3 76 9 6
RX12 L3 00 4 101 10 11/16 7 1/4
Use two connectors (RR01) to connect 45° elbow (RX12) to Transair pipe.

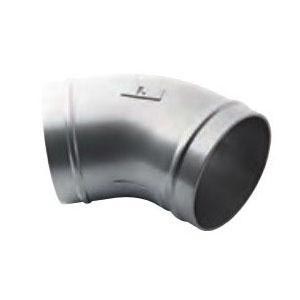

6" 45° Elbows


Elbow dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) L1 (in) Z (in) lbs.
RA12 L8 00 6 168 12 1/4 5 3/8 5.22

8" 45° Elbows


Elbow dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) C TO E (in) lbs.
RA12 V1200 8 220 4.25 --
