Transair Installation Tools and Tool Kits

Transair Installation Tools make installing or modifying a Transair system easier. With our range of pipe cutters, drill bits, deburring tools, and crimping tools all diameters, 1/2" (16.5mm) to 6" (168mm), can be installed six times faster than the traditional options of copper and steel. The Transair tools are easy to operate and built to provide years of dependable service.

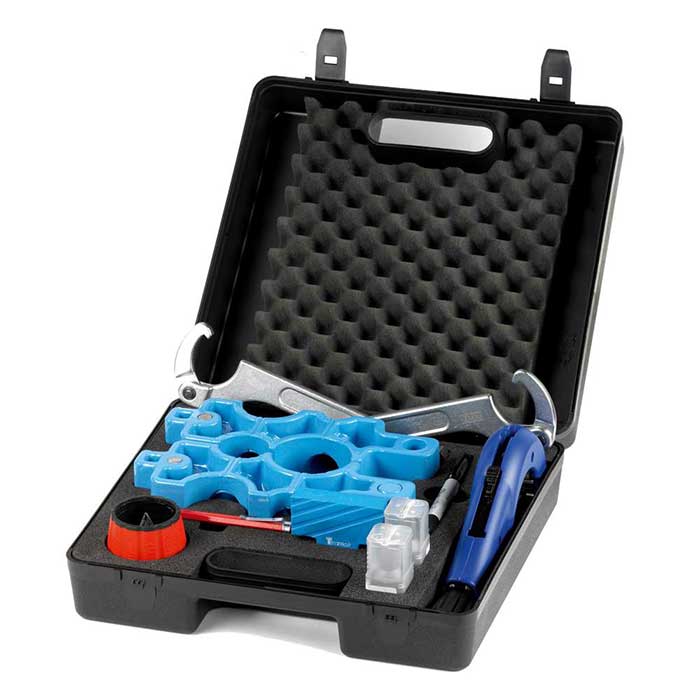

Tool Case

This tool case simplifies the use and transportation of tools. It contains all the tools necessary for completing an installation.

Includes:
• 6698 01 03 Drilling Jig
• 6698 02 01 and 6698 02 02 Drilling Tools
• 6698 03 01 Rigid Pipe Cutter
• 6698 04 01 Chamfer Tool
• 6698 04 02 Deburring Tool
• 6698 05 03 Set of Tightening Spanners
• 6698 04 03 Marking Tool

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 00 05 1/2"(16.5mm) to 2-1/2"(63mm)





*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 03 01 1/2"(16.5mm) to 3"(76mm)
EW08 00 03 4"(101mm) to 6"(168mm)
Spare rotary cutter blade for Transair cutter 6698 03 01: EW08 00 99
Spare rotary cutter blade for Transair cutter EW08 00 03: EW08 00 04



*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 01 03 1/2"(16.5mm) to 2-1/2"(63mm)

Drilling Tool

6698-02-02
6698-02-02 Dimensions
*Scroll to the right on to see entire chart
Product # ØD1 IN (MM) ØD2 IN (MM) H IN Used for Transair Pipe Sizes Quick Ship
6698 02 02 5/8 (16) 7/16 (11) 2 7/8 1" (25mm)
Drilling tool 6698 02 02 is required to install 1" Transair brackets. Can be used with all types of drills.
6698-02-01
6698-02-01 Dimensions
*Scroll to the right to see entire chart
Product # ØD1 IN (MM) ØD2 IN (MM) H IN Used for Transair Pipe Sizes Quick Ship
6698 02 01 1 (22) 1/2 (13) 2 3/4 1-1/2"(40mm) - 2-1/2"(63mm)
Drilling tool 6698 02 01 is required to install 1-1/2" and 2-1/2" Transair brackets. It is also used to create the two holes needed for double-clamp ring connectors when cutting to length 2-1/2" Transair pipe
EW09-00-64
EW09-00-64 Dimensions
*Scroll to the right to see entire chart
Product # ØD1 IN (MM) ØD2 IN (MM) H IN Used for Transair Pipe Sizes Quick Ship
EW09 00 22 1 (22) 1/2 (13) 2 3/4 1-1/2"(40mm) - 2-1/2"(63mm)
EW09 00 30 1-3/16 (30) 1/2 (13) 2 3/4 3"(76mm) - 4"(101mm)
EW09 00 51 2 (50) 1/2 (13) 2 3/4 6"(168mm)
EW09 00 64 2-1/2 (63) 1/2 (13) 2 3/4 6"(168mm)
Drilling tool EW09 is required to install Transair direct feed brackets.
After drilling, it is important to deburr and clean the pipe

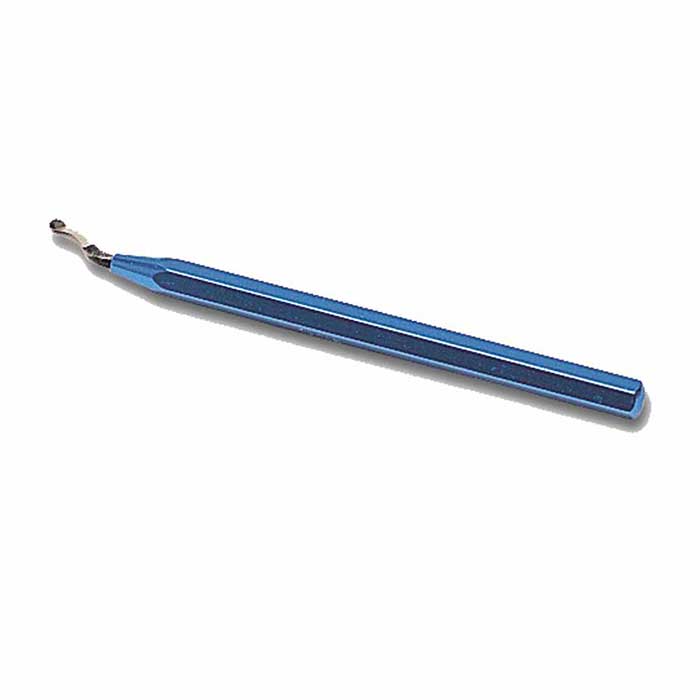

Deburring Tool

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 04 02 1/2"(16.5mm) to 6"(168mm)

Chamfer Tool

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 04 01 1/2"(16.5mm) to 1-1/2"(40mm)

Marking Tool

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 04 03 1/2"(16.5mm) to 1-1/2"(40mm)

Spanner Wrenches

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
6698 05 03 2"(50mm) to 2-1/2"(63mm)

Pressurized System Drilling Tool

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Bracket Sizes Quick Ship
EA98 06 00 1"(25mm) to 2-1/2"(63mm)

Portable Crimping Tool Kit

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
EW01 00 02 3"(76mm) to 6"(168mm)

Jaws for Portable Crimping Tool

*Scroll to the right on mobile to see entire chart
Product # Used for Transair Pipe Sizes Quick Ship
EW02 L1 00 3"(76mm)
EW02 L3 00 4"(100mm)
EW02 L8 00 6"(168mm)

14V Battery for Portable Crimping Tool

*Scroll to the right on mobile to see entire chart
Product # Volts Quick Ship
EW03 00 01 14
