Flanged Tees

Diameter: 3" to 6" (76mm to 168mm)
TransairAluminumPipe.com is your complete source for Transair Flanged Tees. Transair Flanged Tees are quick and easy to install.
Click Here for Technical Data

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

3" to 6" (76mm to 168mm) Flanged Tees

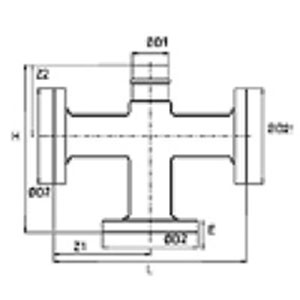

3 flanged Tee dim
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD
(in)		 ØD
(mm)		 DN
(in)		 D
(in)		 H
(in)		 L
(in)		 E
(in)		 Z1
(in)		 Z2
(in)		 Quick
Ship

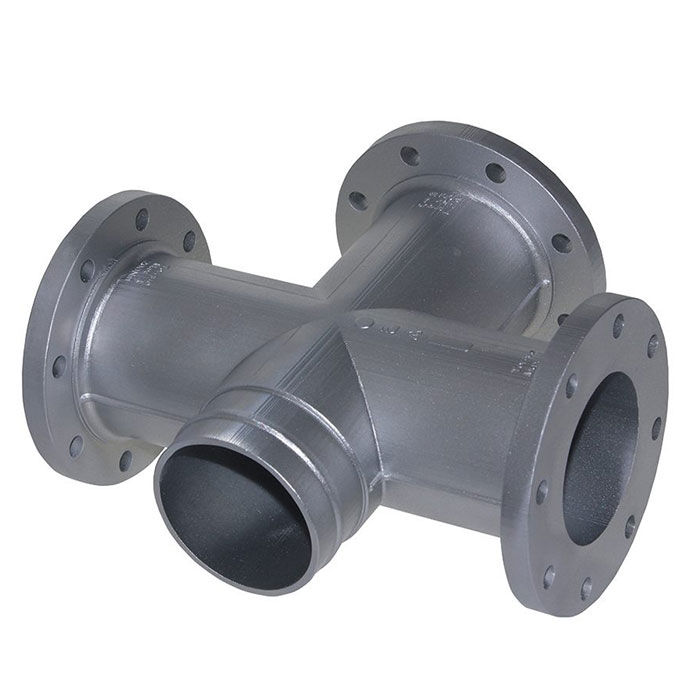

RA07 L1 03 46 3 76 3 7 8/16 14 16 5/16 15/16 8 2/16 5 14/16
RA07 L3 03 46 4 101 4 9 1/16 14 15/16 17 4/16 15/16 8 10/16 6 5/16
RA07 L8 03 46 6 168 6 11 17 11/16 20 4/16 1 10 3/16 7 8/16

3" to 6" (76mm to 168mm) Flanged Tees


1 flanged Tees dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD1
(in)		 ØD1
(mm)		 ØD2
(in)		 ØD2
(mm)		 L
(in)		 Z1
(in)		 Z2
(in)		 Quick
Ship

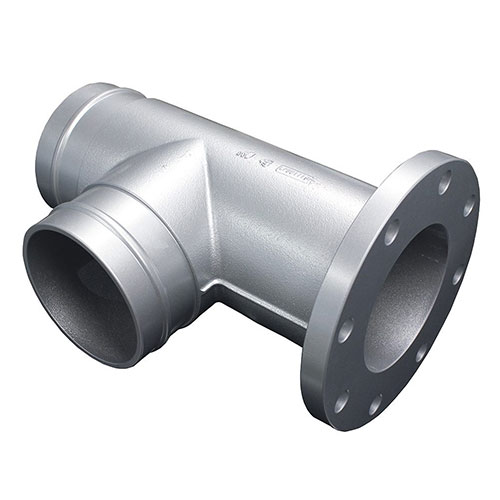

RA44 L1 00 46 3 76 3 7 8/16 14 15/16 5 14/16
RA44 L3 00 46 4 101 4 9 1/16 14 15/16 15/16 6 5/16
RA44 L8 00 46 6 168 6 11 17 10/16 1 7 8/16
