End Caps

Diameter: 1/2" to 6" (16.5mm to 168mm)
TransairAluminumPipe.com is your complete source for Transair End Caps. Transair End Caps are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: This product (RX25 L1 00, RX25 L3 00) can expose you to chemicals including Nickel and Nickel Compounds which is known to the State of California to cause cancer.
WARNING: This product (6625 50 00, 6625 63 00) can expose you to chemicals including Carbon black (airborne, unbound particle which is known to the State of California to cause cancer.
WARNING: This product (6625 17 00, 6625 25 00, 6625 40 00) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

Vented End Caps 1/2" to 2 1/2"

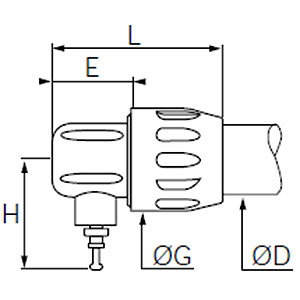

6625-25-00 dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD(in) ØD(mm) E(in) ØG(in) H(in) L(in) Quick Ship
6625 17 00 1/2 16.5 1 1 3/8 1 13/16 2 7/16
6625 25 00 1 25 1 5/16 1 3/4 2 3
6625 40 00 1 1/2 40 1 3/8 2 5/8 2 3/16 3 7/8
Ø 1/2": supplied with LF3000 6mm plug. Model Ø 1", Ø 1 1/2", Ø 2 and Ø 2 1/2": supplied with LF3000 5/16" plug.

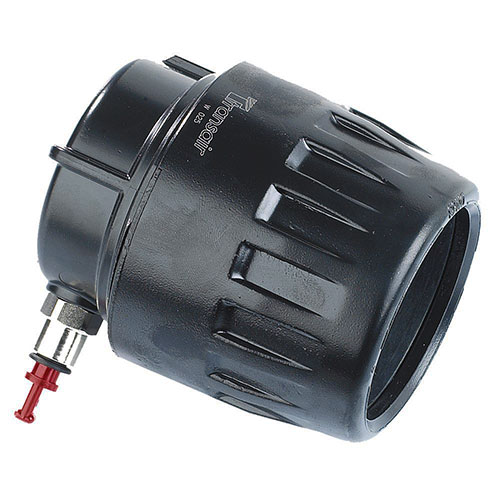

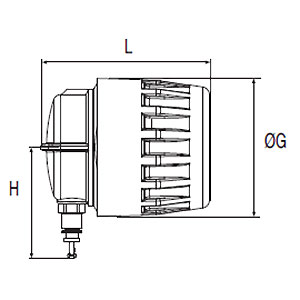

6625-63-00 Dimenions

*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) E (in) ØG (in) H (in) L (in) Quick Ship
6625 50 00 2 50 1 7/8 3 1/8 2 5/8 4 1/4
6625 63 00 2 1/2 63 1 1/4 3 9/16 2 15/16 4 3/8
Ø 1/2": supplied with LF3000 6mm plug. Model Ø 1", Ø 1 1/2", Ø 2" and Ø 2 1/2": supplied with LF3000 5/16" plug.

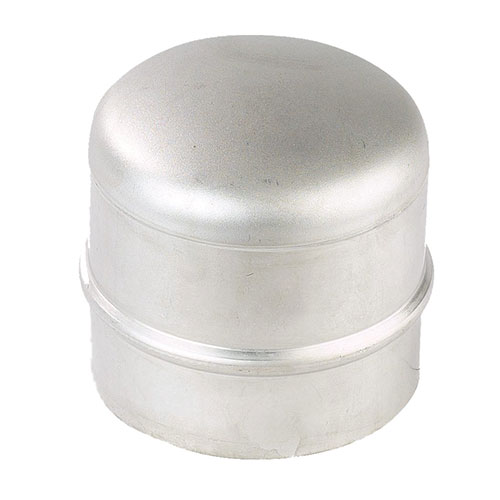

End Caps 3" and 4"

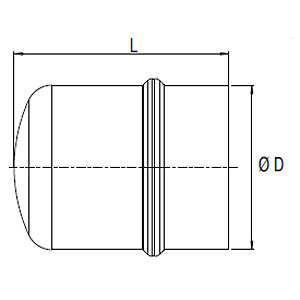

End Caps dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) L (in) Quick Ship
RX25 L1 00 3 76 3 15/16
RX25 L3 00 4 101 4 1/4
Use one connector (RR01) to connect end caps (RX25) to Transair® pipe.

End Cap with Plug 3", 4", and 6"

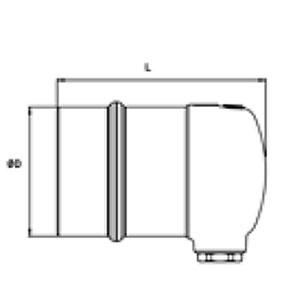

RA25 L1 04 dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) L (in)
RA25 L1 04 3 76 4 27/32
RA25 L3 04 4 101 4 27/32
RA25 L8 04 6 168 4 9/16
End cap Plug is 1/2"

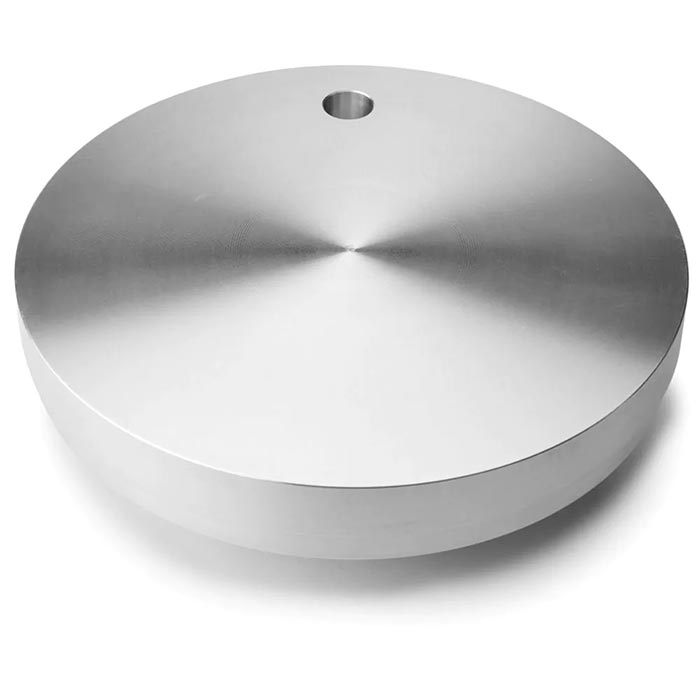

End Cap 8"


RA25 V1200 dimensions
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) T (in)
RA25 V1200 8 220 1.25
