Wall Brackets

TransairAluminumPipe.com is your complete source for Transair Wall Brackets. Transair Wall Brackets are quick and easy to install.
Click Here for Technical Data

Max. Working Pressure: 188 PSI from -4°F to +140°F
(12.9 bar form -20° to +60° C)
232 PSI from -4°F to +115°F
(15.9 bar from -20° to +46.1° C)

Vacuum: 98.7% (29.6" Hg)
Working Temperature: -4° to +140° F (-20° to +60° C)


Product Features:
■ 1, 2 or 3 ports
■ For wall or machine mounting
■ Supplied with brass plugs
■ Drain outlet 1/4"
■ Non-flammable (conforms to UL94-HB standard)

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Get A Free Quote!

1 Port 45° Wall Bracket, NPT

6699-01-02 dimensions
*Scroll to the right on mobile to see entire chart
Product # ØD(in) ØD(mm) C1(in) C2(in) H(in) Z(in) K(in) N(in)
Quick Ship
6640 17 22 1/2 16.5 1/2 1/4 3 1/2 2 1/2 3 5/16 3 1/4
6640 25 22 1 25 1/2 1/4 3 5/8 2 1/2 3 5/16 3 1/4


1 Port 45° Threaded Wall Bracket, NPT

dimensions for 6642-22-22
*Scroll to the right on mobile to see entire chart
Product # C1(in) C2(in) C3(in) H(in) K(in) M(in) N(in)
6642 22 22 1/2 1/2 1/4 2 1/2 3 5/16 2 5/8 3 1/4


2 Port 90° Wall Bracket

dimensions 6684-17-22
*Scroll to the right on mobile to see entire chart
Product # ØD(in) ØD(mm) C1(in) C2(in) G(in) H(in) K(in) N(in)
6684 17 22 1/2 16.5 1/2 1/4 1 5/16 2 9/16 2 15/16 3 1/4
6684 25 22 1 25 1/2 1/4 1 3/4 3 3/16 2 15/16 3 1/4


2 Port 45° Wall Bracket, NPT

dimensions 6689-17-22
*Scroll to the right on mobile to see entire chart
Product # ØD(in) ØD(mm) C1(in) C2(in) H(in) Z(in) K(in) N(in)
Quick Ship
6689 17 22 1/2 16.5 1/2 1/4 3 1/2 2 1/2 3 5/16 3 1/4
6689 25 22 1 25 1/2 1/4 3 5/8 2 1/2 3 5/16 3 1/4


2 Port 90° Threaded Wall Bracket, NPT

dimensions 6688-22-22
*Scroll to the right on mobile to see entire chart
Product # C1(in) C2(in) C3(in) H(in) K(in) M(in) N(in)
6688 22 22 1/2 1/2 1/4 1 7/8 2 7/8 2 5/8 3 1/4


2 Port 45° Threaded Wall Bracket, NPT

dimensions 6691-22-22
*Scroll to the right on mobile to see entire chart
Product # C1(in) C2(in) C3(in) H(in) K(in) M(in) N(in)
6691 22 22 1/2 1/2 1/4 2 1/2 3 5/16 2 5/8 3 1/4


3 Port Wall Bracket, NPT

6699-01-02 dimensions
*Scroll to the right on mobile to see entire chart
Product # øD(in) øD(mm) C1(in) C2(in) H(in) Z(in) K(in) N(in)
Quick Ship
6696 25 22 1 25 1/2 1/4 3 5/8 2 1/2 3 5/16 3 1/4


3 Port Threaded Wall Bracket, NPT

dimensions for 6636 28 22
*Scroll to the right on mobile to see entire chart
Product # C1(in) C2(in) C3(in) H(in) K(in) M(in) N(in)
6636 28 22 3/4 1/2 1/4 2 1/2 3 5/16 2 5/8 3 1/4

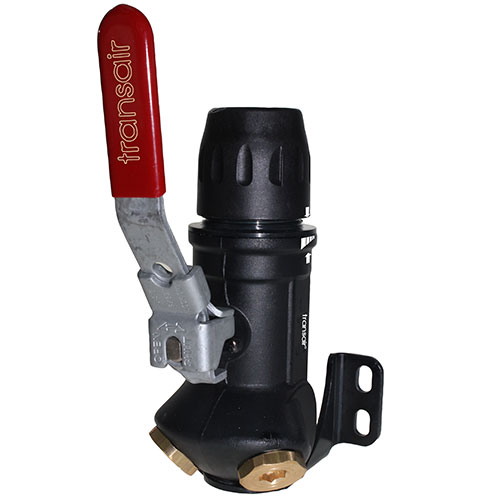

1 port 45° Wall Bracket With Ball Valve, NPT

dimensions-6679-17-22
*Scroll to the right on mobile to see entire chart
Product # øD(in) øD(mm) C1(in) C2(in) H(in) Z(in) K(in) N(in)
6679 17 22 1/2 16.5 1/2 1/4 5 13/16 4 7/8 3 5/16 2 3/4


2 Port 45° Wall Bracket With Ball Valve, NPT

dimensions 6694-17-22
*Scroll to the right on mobile to see entire chart
Product # øD(in) øD(mm) C1(in) C2(in) H(in) Z(in) K(in) N(in)
Quick Ship
6694 17 22 1/2 16.5 1/2 1/4 5 13/16 4 7/8 3 5/16 2 3/4
6694 25 22 1 25 1/2 1/4 6 13/16 5 5/8 3 5/16 4 1/4


3 Port Wall Bracket With Ball Valve, NPT

dimensions 6638-25-22
*Scroll to the right on mobile to see entire chart
Product # øD(in) øD(mm) C1(in) C2(in) H(in) Z(in) K(in) N(in)
Quick Ship
6638 25 22 1 25 1/2 1/4 6 13/16 5 5/8 3 15/16 4 1/4
