Equal Tees

Diameter: 1/2" to 6" (16.5mm to 168mm)
TransairAluminumPipe.com is your complete source for Transair Equal Tees. Transair Equal Tees are quick and easy to install.
Click Here for Technical Data

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Get A Free Quote!

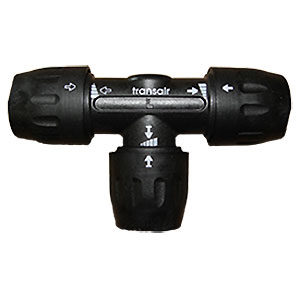

Equal Tees 1/2" to 2-1/2"

6604 dimentions
*Scroll to the right on mobile to see entire chart
Product # øD(in) øD(mm) øG(in) H(in) L(in) Z1(in) Z2(in) Quick Ship
6604 17 00 1/2 16.5 1 5/6 2 5/6 4 3/4 1 5/6 1 1/4
6604 25 00 1 25 1 3/4 2 11/16 6 2 1 9/16
6604 40 00 1 1/2 40 2 5/8 4 8 1/16 2 1/4 2 1/4

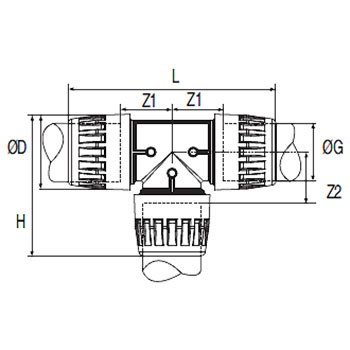

Dimenions
*Scroll to the right on mobile to see entire chart
Product # øD (in) øD (mm) øG (in) H (in) L (in) Z1 (in) Z2 (in) Quick Ship

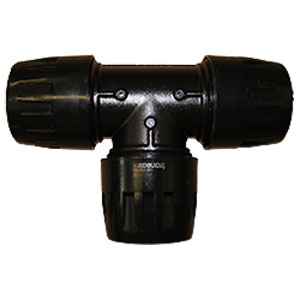

6604 50 00 2 50 3 3/16 6 1/8 9 1/8 2 3/16 2 3/16
6604 63 00 2 1/2 63 3 9/16 4 13/16 9 5/8 2 7/16 2 7/16

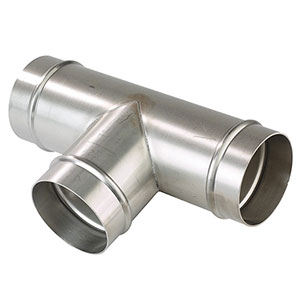

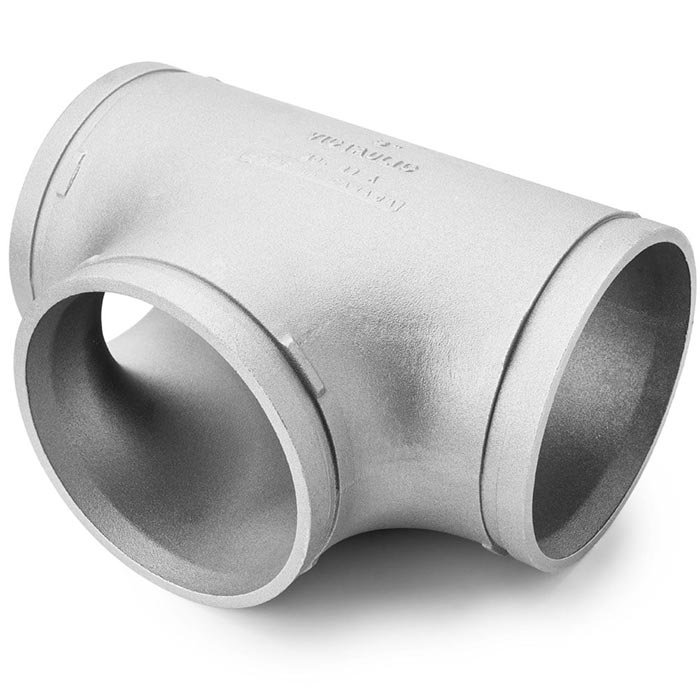

Equal Tees 3" to 6"

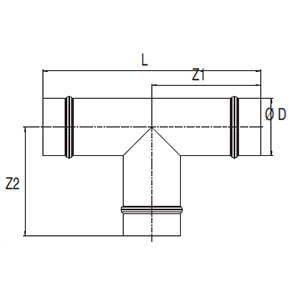

Equal Tees dimentions
*Scroll to the right on mobile to see entire chart
Product # øD (in) øD (mm) L (in) Z1 (in) Z2 (in) Quick Ship
RX04 L1 00 3 76 11 7/16 5 11/16 5 11/16
RX04 L3 00 4 101 12 3/16 6 1/8 5 5/16
RA04 L8 00 6 168 14 3/16 7 1/16 7 5/16
Use three connectors (RR01) to connect equal tees (RX04 and RA04) to Transair® pipe.

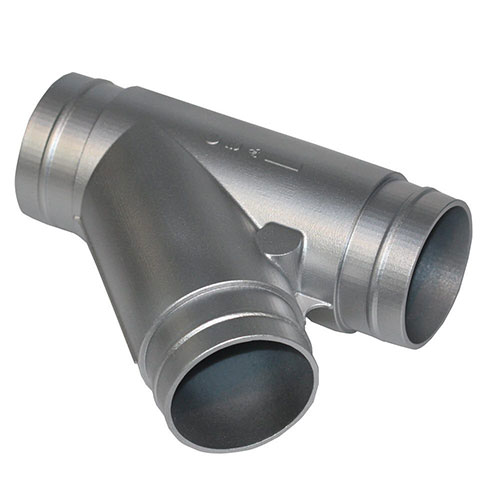

Equal Y Tee

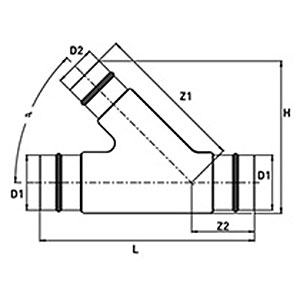

Equal Y Tee dimentions
*Scroll to the right on mobile to see entire chart
Product # øD (in) øD (mm) L (in) H (in) Z1 (in) Z2 (in)
RA26 63 00 2 1/2 63 17 1/64 10 1/8 11 1/32 5 63/64
RA26 L1 00 3 76 14 13/32 10 10 15/64 4 11/64
RA26 L3 00 4 101 15 19/32 11 27/64 15 19/32 4 9/16
RA26 L8 00 6 168 18 47/64 15 25/32 18 47/64 4 61/64
