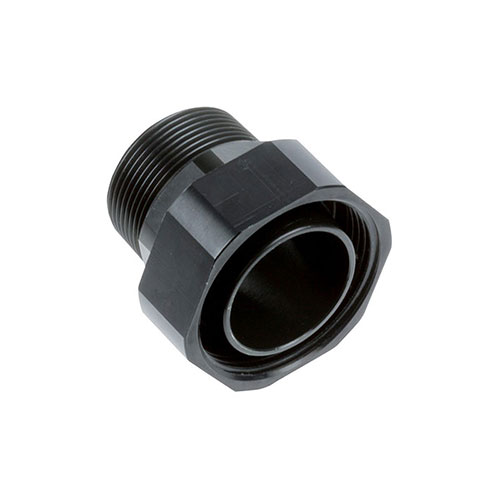

Male NPT Threaded Stud Nuts

Diameter: 1/2" to 2 1/2" (16.5mm to 63mm)
TransairAluminumPipe.com is your complete source for Transair Male NPT Threaded Stud Nuts. Transair Male NPT Threaded Stud Nuts are quick and easy to install.
Click Here for Technical Data

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

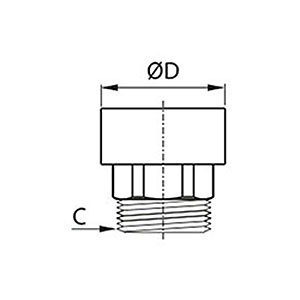

Dimenions for stud nuts

Model Numbers & Dimensions

16.5mm   *Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) C(in) E(in) ØG(in) H(in) Quick Ship
6611 17 22 1/2 16.5 1/2 5/8 1 5/16 2 1/2

25mm   *Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) C(in) E(in) ØG(in) H(in) Quick Ship
6611 25 22 1 25 1/2 9/16 1 5/16 2 11/16
6611 25 28 1 25 3/4 9/16 1 3/4 2 3/4
6611 25 35 1 25 1 9/16 1 3/4 2 3/4

40mm   *Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) C(in) E(in) ØG(in) H(in) Quick Ship
6611 40 35 1 1/2 40 1 9/16 1 3/4 2 13/16
6611 40 43 1 1/2 40 1 1/4 5/8 1 3/4 2 13/16
6611 40 50 1 1/2 40 1 1/2 5/8 2 5/8 4 3/8
6611 40 44 1 1/2 40 2 1 2 5/8 4 3/8

50mm   *Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) Thread (NPT) Hex 1(mm) Hex 2(mm) L(in) Quick Ship
6611 50 44 2 50 2 - 60 3.19
6611 50 50 2 50 1 1/2 - 60 3.07

63mm   *Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (in) ØD (mm) C(in) E(in) ØG(in) H(in) Quick Ship
6611 63 44 2 1/2 63 2 15/16 2 5/8 4 3/8
6611 63 41 2 1/2 63 2 1/2 1 2 5/8 4 1/2
