Simple Reducing Brackets

Diameter: 1" to 6" (25mm to 168mm)
For rigid drops with horizontal take off or for all types of air supply with rigid pipe or flexible hose on an installation which incorporates an efficient air dryer. TransairAluminumPipe.com is your complete source for Simple Reducing Brackets.
Transair Simple Reducing Brackets are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: This product (RA69 25 17, RA69 40 25, RA69 50 25, RR63 L1N08, RR63 L3N08) can expose you to chemicals including Carbon black (airborne, unbound particle which is known to the State of California to cause cancer.
WARNING: This product (RA68 25N04, RA68 40N04, RA68 50N04, RA68 50N08, RA68 63N08, RR63 L8N12, RR63 L8N16) can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Product Features:
■ Optimum flow
■ Compact
■ Well adapted for most original equipment manufacturer (OEM) applications and for use with neutral gases
■ Quick installation without any cutting of pipe
Simple Reducing Brackets

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

1"(25mm) to 2"(50mm)


*Scroll to the right to see entire chart
Quantity Add to
Quote		 Product # ØD1
IN (MM)		 ØD2
IN (MM)		 M IN G IN L IN N IN Z IN Quickship
RA69 25 17 1 (25) 1/2 (16.5) 3 5/8 1 5/16 1 1/2 2 1/16 2
RA69 40 25 1 1/2 (40) 1 (25) 4 5/8 1 3/4 1 1/2 3 2 3/8
RA69 50 25 2 (50) 1 (25) 4 15/16 1 3/4 1 1/2 3 7/16 2 5/8
To drill Transair pipe, use drilling tools 6698 02 01 and 6698 02 02.

1"(25mm) to 1 1/2"(40mm) NPT


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD IN (MM) C IN L IN N IN M IN Quickship
RA68 25N04 1 (25) 1/2 1 7/16 2 1/16 3 3/8
RA68 40N04 1 1/2 (40) 1/2 1 7/16 2 15/16 3 15/16
Supplied with brass plug. To drill Transair pipe, use drilling tools 6698 02 01 and 6698 02 02.

2"(50mm) to 2 1/2"(63mm) NPT


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD IN (MM) C IN L IN N IN M IN Quickship
RA68 50N04 2 (50) 1/2 1 7/16 3 3/8 4 1/2
RA68 50N08 2 (50) 1 1 7/16 3 3/8 5 1/16
RA68 63N08 2 1/2 (63) 1 1 29/64 3 15/16 5 35/64
Supplied with brass plug. To drill Transair pipe, use drilling tools 6698 02 01 and 6698 02 02.

3"(76mm) to 4"(101mm) NPT


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD IN (MM) C1 IN C2 IN E IN L IN Quickship
RR63 L1N08 3 (76) 1 M12 2 5 3/8
RR63 L3N08 4 (101) 1 M12 3 1/8 5 3/8
Nitrile Seals. Supplied with Ø 1" adaptor (6621 25 35). To drill Transair pipe, use drilling tool EW09.

6"(168mm) NPT


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD IN (MM) C1 IN C2 IN E IN L IN Quickship
RR63 L8N12 6 (168) 1 1/2 16 3 9/16 9 1/4
RR63 L8N16 6 (168) 2 16 4 1/16 9 1/4

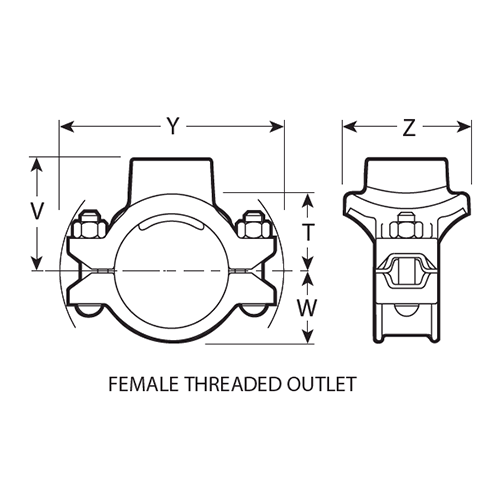

8"(220mm) Female Threaded NPT Saddle Reducing Bracket


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD (IN) ØD (MM) THD SIZE (IN) T (IN) V (IN) W (IN) Y (IN) Z (IN)
RR63 V12N16 8 220 2 5.44 6.19 4.81 12.42 4.5
RR63 V12N20 8 220 2-1/2 5.07 6.19 4.81 12.42 4.5
