Male NPT Threaded Pipe Adapters

Diameter: 1/2" to 3"
TransairAluminumPipe.com is your complete source for Transair Male NPT Threaded Pipe Adapters. Transair Male NPT Threaded Pipe Adapters are quick and easy to install.
Click Here for Technical Data

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Get A Free Quote!

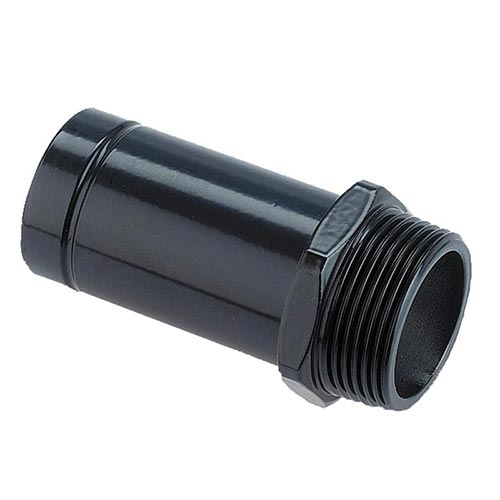

adapters dimensions 6621
1/2" (16.5mm)
*Scroll to the right on mobile to see entire chart
Product # øD (IN) øD (MM) C (IN) L (IN) H (IN) Quick Ship
6621 17 22 1/2 16.5 1/2 1 11/16 3/16

1" (25mm)
*Scroll to the right on mobile to see entire chart
Product # øD (IN) øD (MM) C (IN) L (IN) H (IN) Quick Ship
6621 25 22 1 25 1/2 1 15/16 1/4
6621 25 28 1 25 3/4 1 15/16 1/4
6621 25 35 1 25 1 1 15/16 1/4

1 1/2" (40mm)
*Scroll to the right on mobile to see entire chart
Product # øD (IN) øD (MM) C (IN) L (IN) H (IN) Quick Ship
6621 40 43 1 1/2 40 1 1/4 2 15/16 5/16
6621 40 50 1 1/2 40 1 1/2 2 15/16 3/8

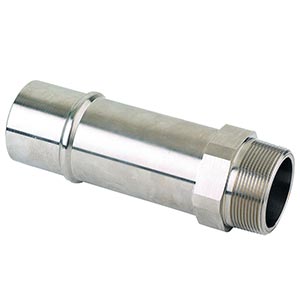

RR21 Dimensions
3" (76mm)
*Scroll to the right on mobile to see entire chart
Product # øD (IN) øD (MM) C (IN) L (IN) H (IN) Quick Ship
RR21 L1N20 3 76 2 1/2 4 15/16 13/16
RR21 L1N24 3 76 3 4 15/16 13/16
