Remote Control Shut-Off Valves

Diameter: 1 1/2" (40 mm)
TransairAluminumPipe.com is your complete source for Transair Remote Control Shut-Off Valves. Transair Remote Control Shut-Off Valves are quick and easy to install. Min. working pressure: 58 PSI • Max. working pressure: 232 PSI. The Transair® remote control shut-off valve is supplied with a plugged vent hole. This allows venting of the downstream network, after closing the valve. Pilot kit (4299 03 01) is sold separately and needed for installation.

Click Here for Technical Data

Note: California residents click here for Proposition 65 information


WARNING: These products can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!
4230-00-40

Model Numbers & Dimensions

*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD(in) ØD(mm) L(mm) Z(mm) Quick Ship
4230 00 40 1½ 40 10¼ 3⅜

Specifications are estimated


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # H(in) L(in) Quick Ship
4299 03 01 5¾ 3 3/16

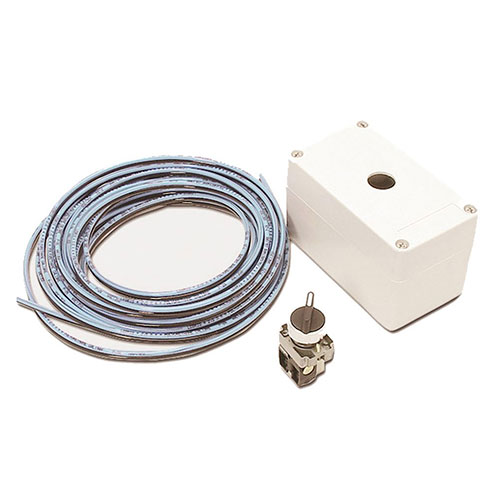

This pilot kit includes: pneumatic ON/OFF switch (maximum 232 PSI operating pressure), twin 4 mm OD polyurethane tube (length 10 m) and plastic box.
